Cold Drawn Stainless Steel Profiles 304 316L 310S Chromium - Nickel High Temperature Resistance

Brand Name : HAOSTEEL

Model Number : HS310 310s

Certification : ISO9001

Place of Origin : CHINA

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 5000tons per month

Delivery Time : 10~15 working days after order confirmed and receive deposit

Packaging Details : Woven bags out of bundle packing with steel belt against damage.

Product : 310 Stainless Steel Angle Bar

Standard : ASTM A276, A484, A479, A580, A582, JIS G4303, JIS G4311, DIN 1654-5,DIN 17440,GB/T 1220

Material : 304, 304L, 321, 321H, 316, 316L,310,310S,430

Surface : Pickled, Polishing, Blasting, etc

Type : Angle

Length : 6m,5.8m,3m or As Required

Delivery : Hot Rolled, Pickled and Annealed

Market : Asia, Europe, South America, Africa.

Contact Now

304 316L 310S cold drawn stainless steel angle bar for sale

HAOSTEEL is one of the most professional manufacturer and supplier of stainless steel angle bar.
Our factory is located in jiangsu province, more than 30 years production and management experience, make us enjoy good evaluation from clients all over the world. We have a whole stainless steel angle bar production line and first-class staff to satisfy all clients requirement.

Product Information:
Stainless Steel Hot-Rolled Angle Bar
Specified length is 4, 5, 6m. Length Tolerance≤+40mm/pcs.
Shape: Right angle Tolerance is 90°±2°
Max Warp: 4mm/m. Whole body’s Max Warp≤0.4% length/pcs
Condition of Delivery: Austenite in Solution; Ferrite in Anneal; or in accordance with customer’s detailed requirement.
Sufrace: Pickled or Sandblasting. Harmful defect is not permit to be existed.
310 stainless steel is austenitic chromium-nickel stainless steel with good oxidation resistance and corrosion resistance, because the higher percentage of chromium and nickel, 310s has much better creep strength, can work continuously at high temperature, and has good high temperature resistance.

Composition Specification (%) (single values are maxima)

Grade C Mn Si P S Cr Ni
310

min.
max.

-
0.25

-
2.00

-
1.50

-
0.045

-
0.030

24.0

26.0

19.0

22.0
310S

min.
max.

-
0.08

-
2.00

-
1.50

-
0.045

-
0.030

24.0

26.0

19.0

22.0
310H

min.
max.

0.04

0.10

-
2.00

-
0.75

-
0.045

-
0.030

24.0

26.0

19.0

22.0

General specification as below:

Equal Angle (A*T)

Size(mm)

Theoretical
weight(mm)

Size
(mm)

Theoretical
weight(mm)

Size
(mm)

Theoretical
weight(mm)
25*3 1.124 75*7 7.976 110*12 19.782
25*4 1.459 75*8 9.03 110*14 22.809
30*3 1.373 75*10 11.089 125*8 15.504
30*4 1.786 80*6 7.376 125*10 19.133
40*3 1.852 80*7 8.525 125*12 22.696
40*4 2.422 80*8 9.658 125*14 26.193

Unequal Angle(A*B*T)

Size
(mm)

Theoretical
weight(mm)

Size
(mm)

Theoretical
weight(mm)

Size
(mm)

Theoretical
weight(mm)
25*16*3 0.912 75*50*8 7.431 125*80*8 12.551
32*20*3 1.171 75*50*10 9.098 125*80*10 15.474
32*20*4 1.522 80*50*5 5.005 125*80*12 18.33
40*25*3 1.484 80*50*6 5.935 140*90*8 14.1
40*25*4 1.936 80*50*7 6.848 140*90*10 17.475
45*28*3 1.687 80*50*8 7.745 140*90*12 20.724

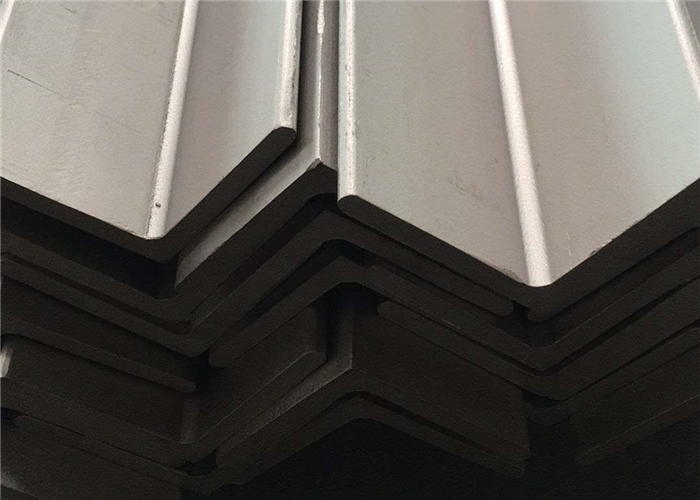

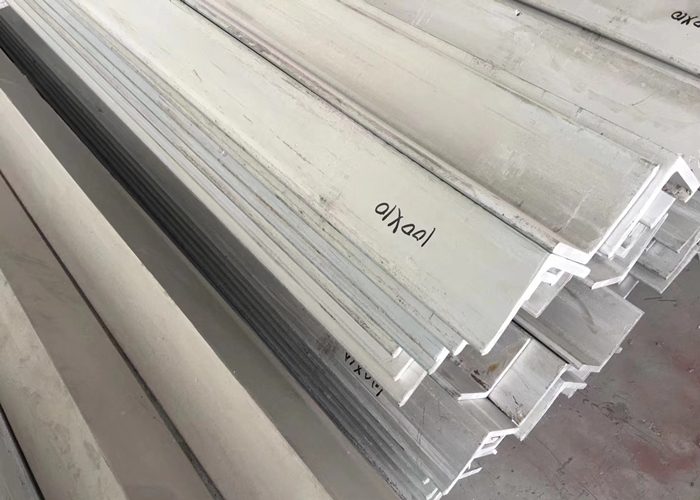

Product show
Cold Drawn Stainless Steel Profiles 304 316L 310S Chromium - Nickel High Temperature Resistance Cold Drawn Stainless Steel Profiles 304 316L 310S Chromium - Nickel High Temperature Resistance
